VHF DMR ラジオ

高品質の Vhf Dmr ラジオは中国のメーカー Lisheng によって提供されています。高品質の Vhf Dmr ラジオを直接購入してください。通信技術の最新イノベーションである Vhf Dmr ラジオを紹介します。この無線機は、困難な環境で信頼性が高く効率的な通信を必要とする専門家のニーズを満たすように設計されており、比類のないパフォーマンスと多用途性を提供します。

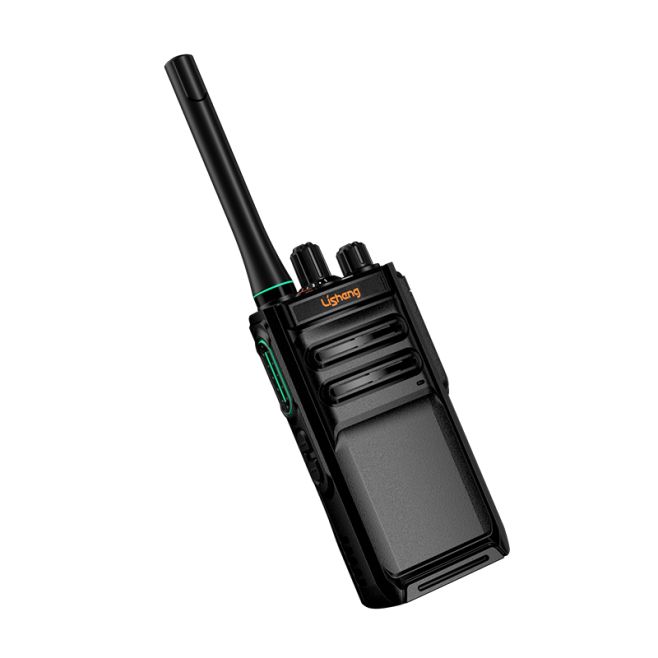

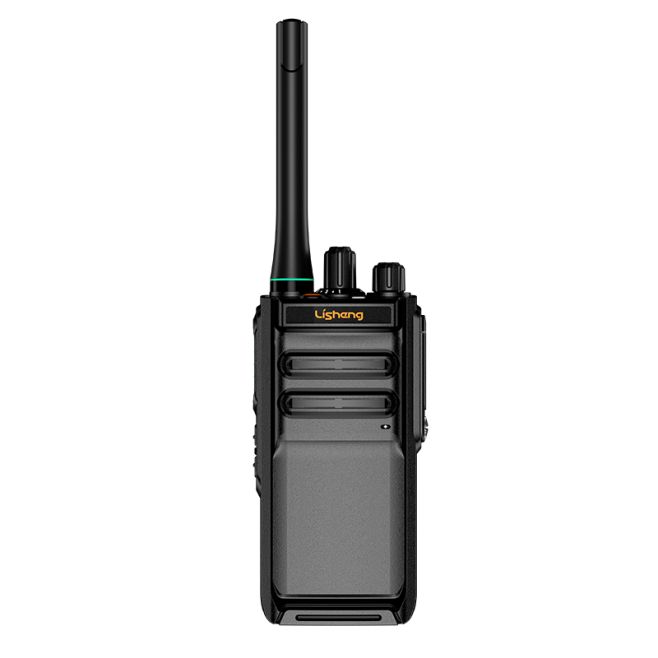

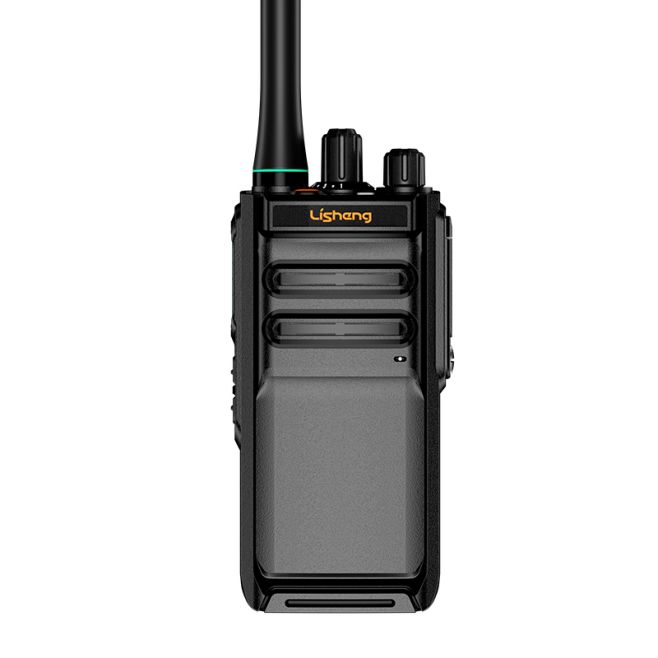

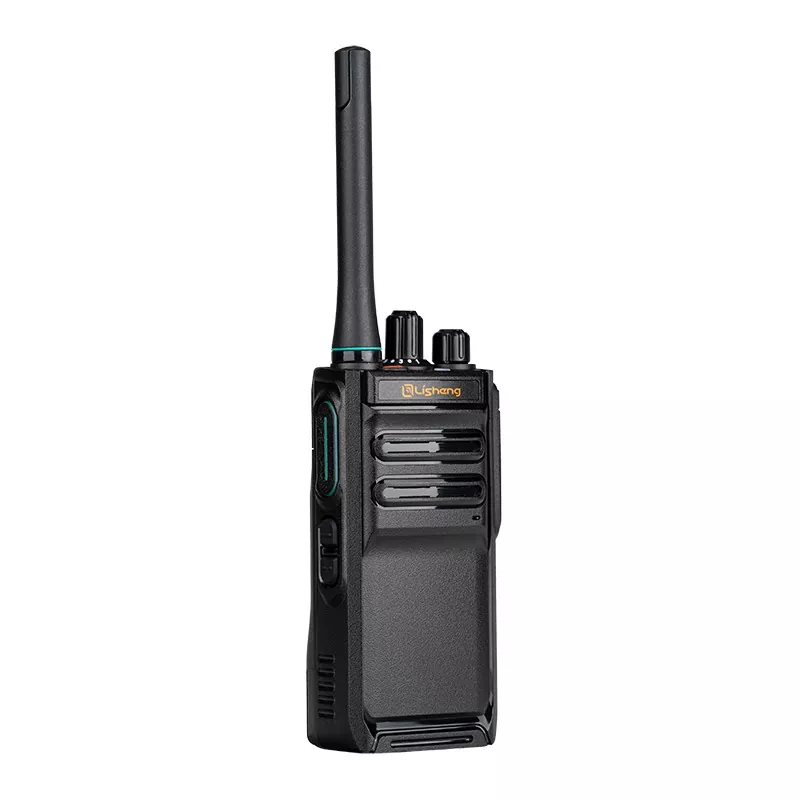

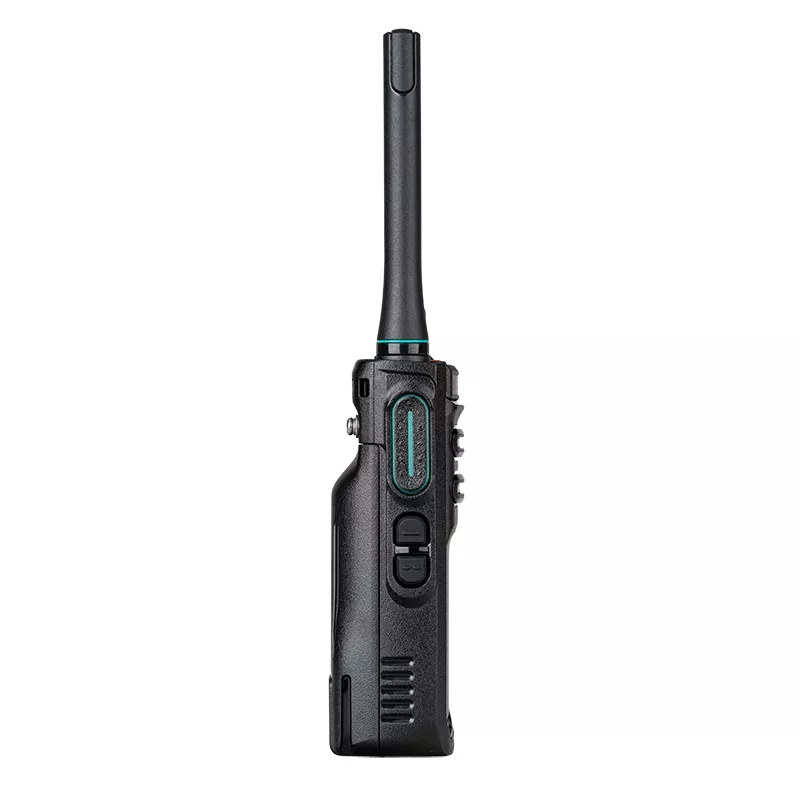

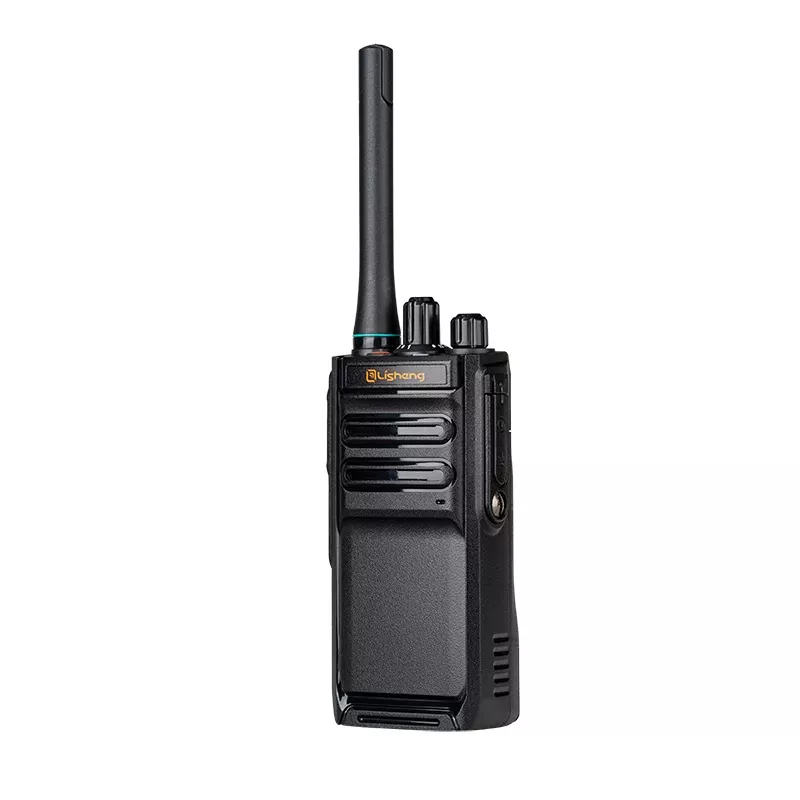

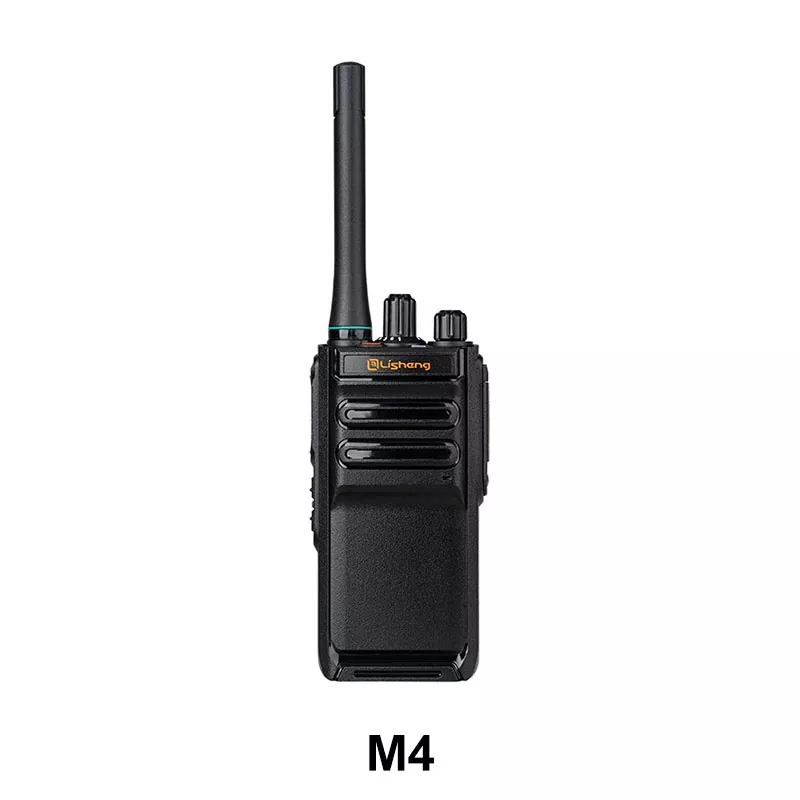

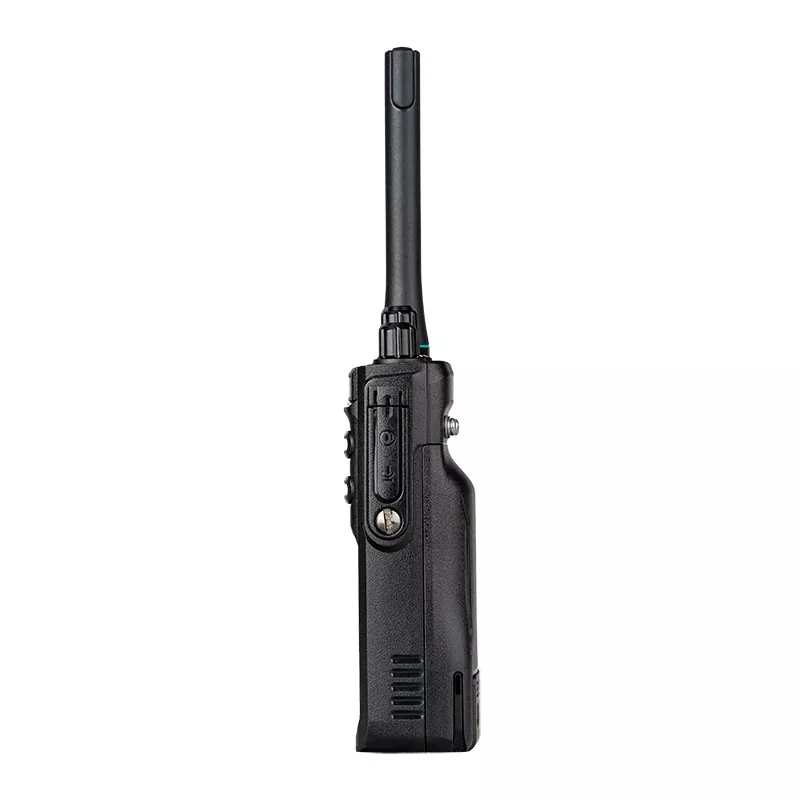

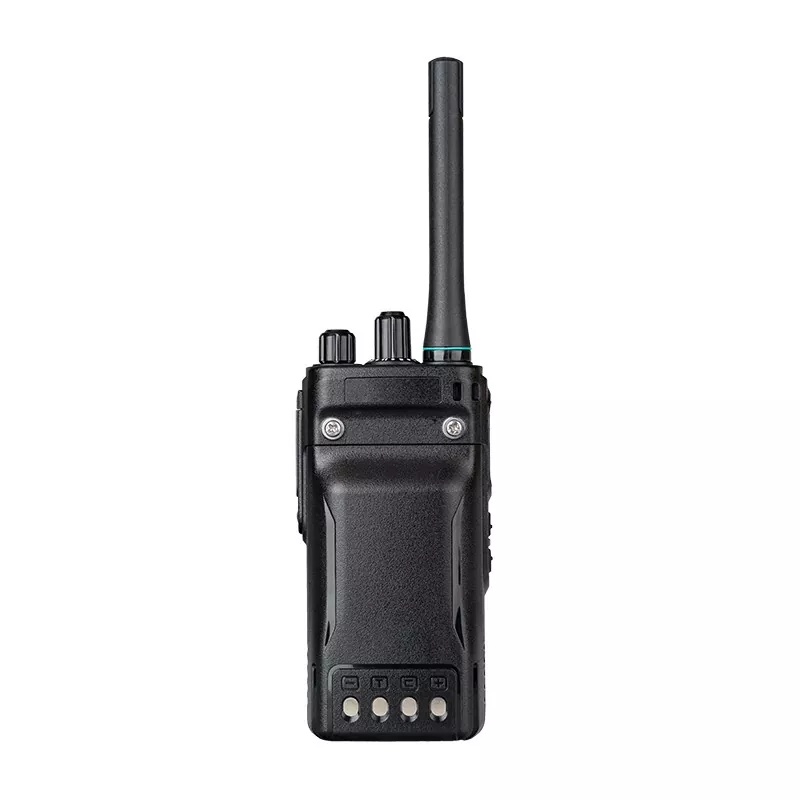

モデル:M4

お問い合わせを送信

製品説明

The producers of Lisheng in China offer high-quality products, you are welcome to purchase straight high-quality Vhf Dmr Radio at a good price. Introducing the latest innovation in communication technology - Vhf Dmr Radio. Designed to meet the needs of professionals who require reliable, efficient communications in challenging environments, this radio delivers unparalleled performance and versatility.


Vhf Dmr radios operate on the Vhf band, providing excellent coverage and penetration, especially in urban and indoor environments. With its Digital Mobile Radio (DMR) capability, it ensures clear, secure communications, making it ideal for industries such as construction, manufacturing, security and public safety.


Vhf Dmr radios are equipped with advanced features for seamless and efficient communication. The radio's rugged construction ensures its reliability in harsh operating conditions, while its ergonomic design makes it comfortable for long-term use. Additionally, it comes with a long-lasting battery for extended operation during long shifts.


One of the key advantages of the Vhf Dmr radio is its ability to support both digital and analog modes, providing flexibility to users transitioning from traditional analog communications to digital technology. This makes it a versatile solution for organizations looking to upgrade their communications systems without disrupting current operations.


Vhf Dmr radios also offer a wide range of features to meet the specific needs of professionals. The radio is equipped with programmable function keys, allowing users to personalize their communication experience. It also supports text messaging, caller ID, and GPS tracking to enhance communication and coordination among team members.


In addition to its powerful performance and advanced features, the Vhf Dmr radio also has a user-friendly interface that ensures ease of use. Its high-resolution display and intuitive controls make navigation and operation simple, even for users unfamiliar with digital radios.


Furthermore, the Vhf Dmr radio is designed to ensure the safety of the user. Its built-in emergency features, such as lone worker and man down alarms, provide additional protection for those working in hazardous environments.


With its exceptional reliability, advanced features and user-friendly design, Vhf Dmr radios are the ideal communications solution for professionals who require reliable and efficient communications in their daily operations. Its exceptional performance and versatility make it a valuable asset to organizations across industries, improving productivity and keeping personnel safe.


All in all, the Vhf Dmr radio is a powerful and reliable communication tool that is ideally suited to the needs of the modern professional. Its rugged construction, advanced features, and user-friendly design make it an excellent choice for organizations looking to upgrade their communications systems. Experience the difference with Vhf Dmr radios today and improve your communications.

M4 is available in both DMR Tier 2 and analog modes, it supports AES 256 encryption keys to secure communication. Rugged and Reliable, IP68 ingress protection, the radio can use across multiple environments and industries.

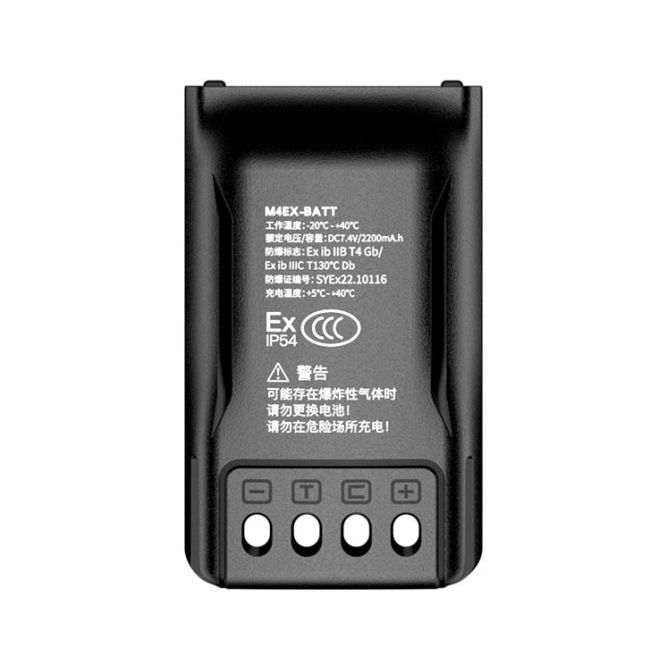

M4EX Intrinsically Safe version is specially designed for those who work in environments with explosive gas and combustible dusts, providing secure and reliable voice and data communication in the dangerous areas.

Product Specification:

General
Frequency Range 136~174MHz,350~400MHz
400~470MHz,450~520MHz
Channel Spacing 12.5 KHz / 25 KHz
Channel/Zone Capacity 32Channels /2 Zones
Operating Voltage 7.4V

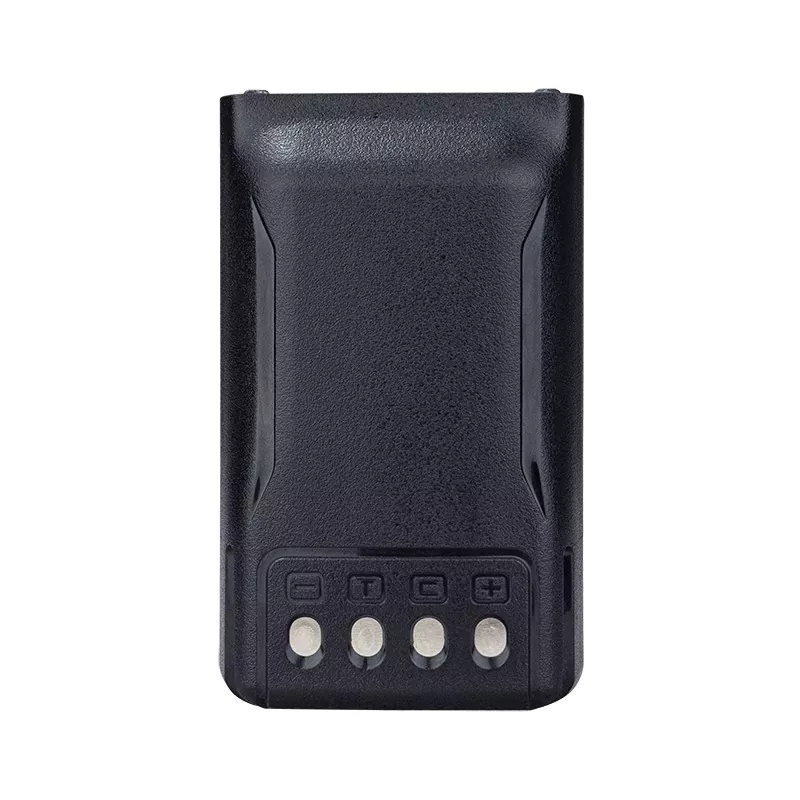

Battery Capacity 2200mAh
Battery Life (5/5/90) Analog: 11 hours ; Digital: 14 hours
Vocoder Type AMBE+2
Frequency Stability ±1.0ppm

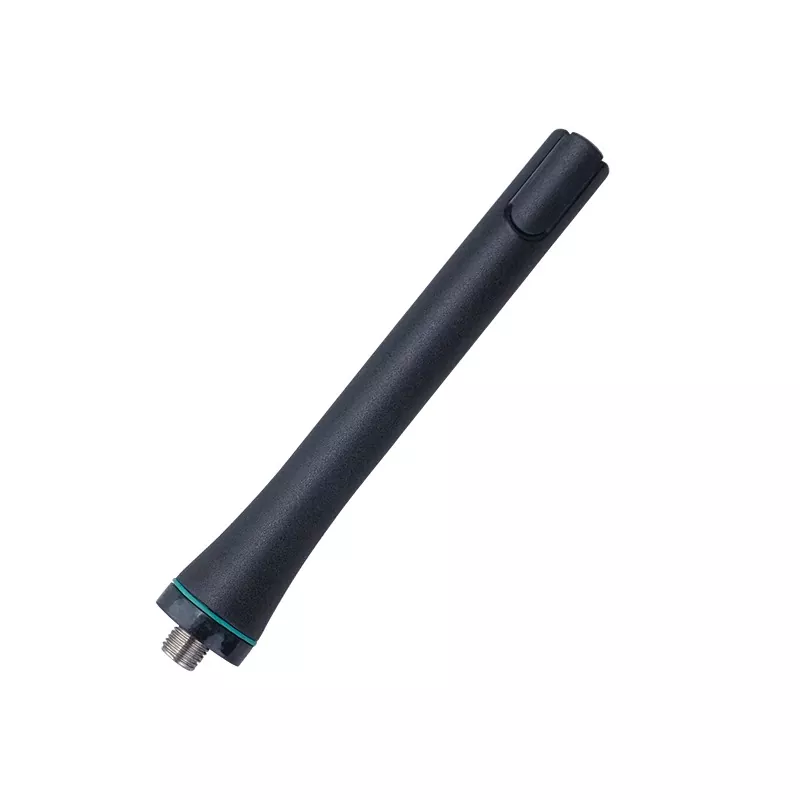

Antenna Impedance 50Ω
Dimensions (without Antenna) 133.5*61.7*40mm
Weight Around 300g
Ingress Protection (IP) Rating IP68


Receiver
Analog Sensitivity 0.2μV (12dB SINAD)
Digital Sensitivity 0.22μV (Typical) (BER 5%)
Adjacent Channel Selectivity 60dB @ 12.5KHz / 65dB @ 25KHz
Intermodulation Rejection 60dB @ 12.5KHz / 60dB @ 25KHz
Blocking 84dB @ 12.5KHz /84dB @ 25KHz
Co-Channel Rejection -12dB @ 12.5KHz
 -8dB @ 25KHz
Spurious Response Rejection 65dB @ 12.5KHz / 65dB @ 25KHz
Rated Audio Output Power 1.0W /16Ω
Conducted Spurious Emission <-57dBm(9KHz~1GHz)
<-47dBm(1GHz~12.75GHz)


Transmitter
RF Power 1W (Low) / ≤5W (High)
Power Margin Variation +2/-3dB (under Extreme Conditions)
Frequency  Error ±1.0ppm
FSK Error <5%
4FSK Transmission
Bit Error Rate (BER)
≤1×10-4
4FSK Modulation
Frequency Deviation Error
≤10.0%
Occupied Bandwidth (PDT/DMR) ≤8.5KHz
TX Attack/Release Time ≤1.5ms
Adjacent Channel Power ≤-50dB @12.5KHz /≤-60dB @25KHz
Transient Adjacent Channel Power ≤-50dB @ 12.5KHz / ≤-60dB @ 25KHz
FM Modulation 16K0F3E @25KHz/
11K0F3E @12.5KHz
4FSK Digital Modulation 12.5KHz(data only):7K60FXD
12.5KHz(data+voice):7K60FXE
Audio Distortion ≤3% @ 40% Deviation
Audio Response +1 ~ -3dB
FM Hum and Noise 40dB @ 12.5KHz / 45dB @ 25KHz
Spurious Emission ≤-36dBm (9KHz~1GHz)
≤-30dBm (1GHz~12.75GHz)

Note: The above specifications are tested in accordance with applicable standards. Due to the continuous development of technology, the above indicators are subject to change without prior notice.

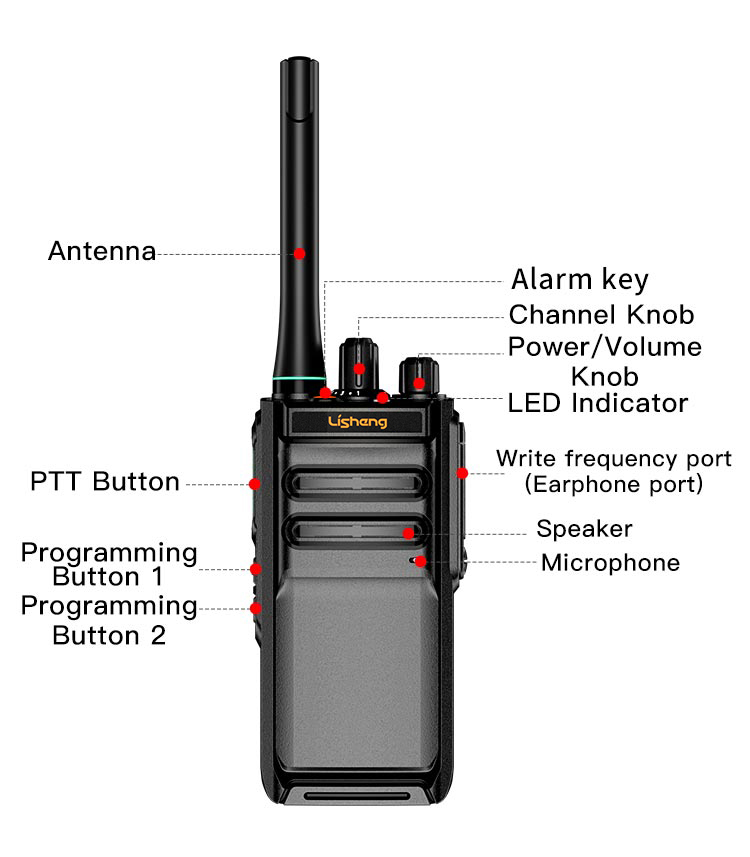

Product Details:

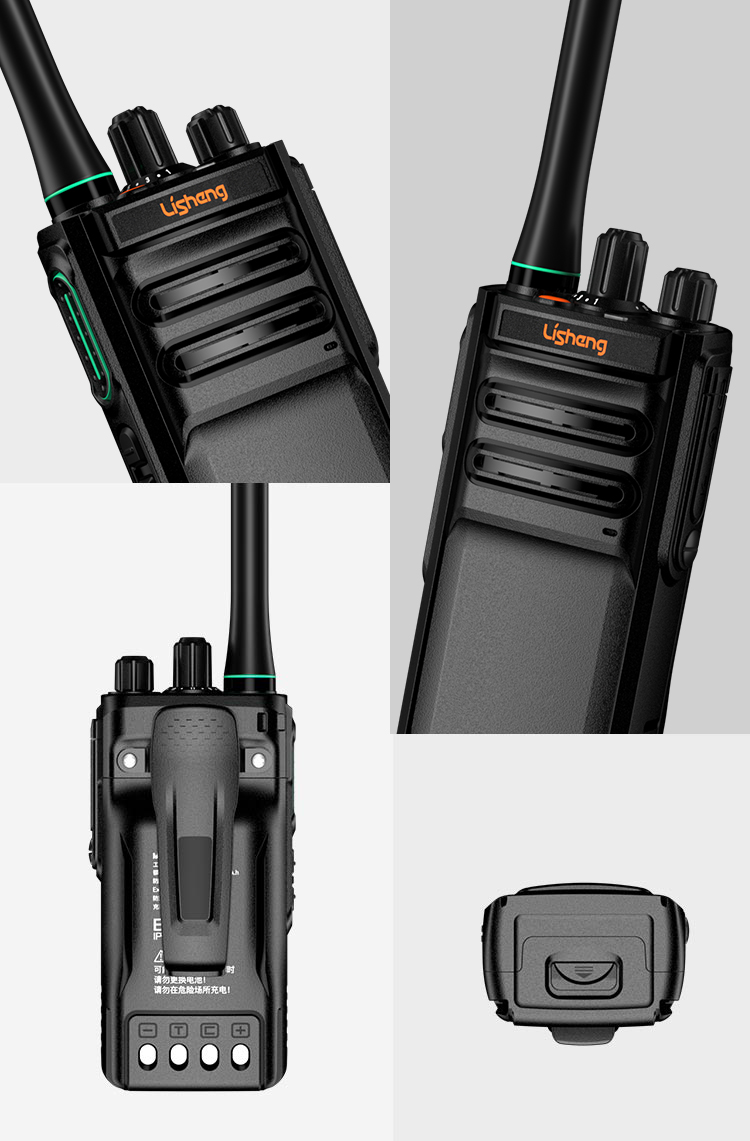

IP68 Waterproof and Dust-tight Build

The M4 is IP68 dust and waterproof, this rugged construction provides dust-tight protection making it suitable for outdoor use.

TDMA 2-Slot

The free slot can be allocated to enhance frequency efficiency and timely response under emergency.

Advanced encryption:

Adopts AES256 encryption to secure communication privacy and optimize information safety.

Analog and Digital Operation

Communicate effortlessly in a mixed group of analog and digital radios, automatically switching with no user intervention.

Loud and Clear Audio

Hear and be heard in noisy environments like construction sites using crystal-clear digital technology and a powerful speaker.

Audio Announcements

Ensure you’re communicating with the intended team by receiving a customizable voice announcement when switching channels.

Our Insepction and Packing Section:

we are committed to delivering top-quality two-way radio products, ensuring each product meets the highest standards through rigorous inspection and packaging processes. Our inspection and packaging team bears the responsibility of ensuring customers receive reliable products, providing a worry-free user experience.

Inspection Process:

1、Visual Inspection: Each two-way radio undergoes a thorough visual inspection to ensure flawless aesthetics that align with the company's brand image.

2、Functionality Testing: Our inspection team conducts comprehensive functionality tests on every radio, ensuring all features operate correctly. This includes key functions such as audio quality, signal strength, and channel switching.

3、Durability Testing: Products undergo durability tests to ensure they function properly in various environmental conditions, including extreme temperatures, humidity, and vibrations.

4、Battery Performance Testing: Battery life is crucial for radio performance. Strict performance tests are conducted on batteries to ensure reliable, extended use.

Packaging Process:

1、Anti-Static Packaging: Each radio undergoes anti-static packaging to prevent electrostatic damage during transportation.

2、Environmentally Friendly Packaging: Committed to sustainability, our packaging materials adhere to international environmental standards.

3、Shock-Resistant Packaging: Professional shock-resistant packaging is employed during transportation to prevent damage to products.

4、Integrity Check: The packaging team performs a final integrity check to ensure products remain intact and undamaged after the packaging process.


Our inspection and packaging processes aim to surpass customer expectations, ensuring that every two-way radio received has undergone rigorous testing and meticulous packaging as a high-quality product.



Customer Evaluation and Feedback:Satisfied customers are our number one priority
